Silicon Steel Laminations for High‑Efficiency Drone, FPV & BLDC Motors
⚡ Reenives: Drone Silicon Steel Laminations Manufacturer in China

🔍 What Are Silicon Steel Laminations? (The Magnetic Core of BLDC Motors)

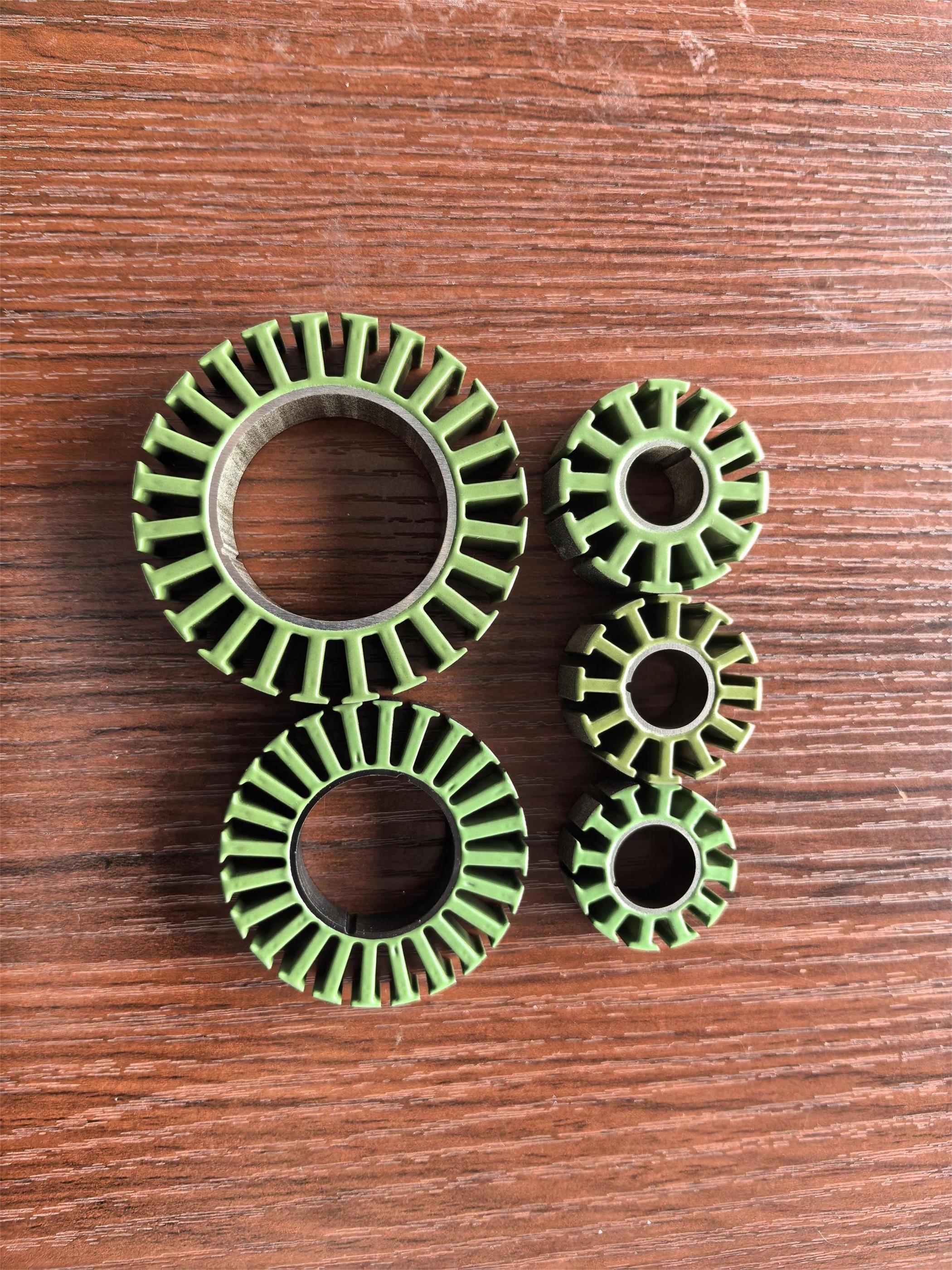

Figure 1: High-grade silicon steel laminations (0.20mm thickness) with epoxy insulation for UAV BLDC motors.

Silicon steel laminations are thin sheets of electrical steel containing 0.5–4.5% silicon, stacked and bonded to form the stator and rotor cores of BLDC motors. The silicon content increases electrical resistivity, drastically reducing eddy current losses. For drone and FPV applications, lamination thickness (0.15mm–0.35mm), grain orientation (non‑grain oriented, NGO), and insulation coating directly determine motor efficiency, heat generation, torque density, and flight endurance. Reenives uses premium NGO silicon steel with proprietary epoxy coating to achieve industry‑leading magnetic performance and thermal stability.

📂 Classification of Silicon Steel Laminations for Drone & BLDC Motors

📊 Technical Parameters & Engineering Data (IEC / Reenives Lab)

All data measured per IEC 60404-2 and verified by Reenives in‑house R&D center (ISO 17025 accredited). Values represent typical performance for drone‑grade silicon steel laminations (OD range: 16mm – 150mm).

🔬 Data source: Reenives internal lab & third‑party validation (SGS). Batch‑to‑batch consistency via ISO 9001:2025 processes.

🚁 Applications – From FPV Racing to Industrial BLDC Systems

Our silicon steel laminations power critical motion applications worldwide:

• ✈️ FPV Racing & Freestyle Drones – Ultra‑thin 0.20mm laminations sustain >60,000 RPM with minimal heat.
• 🚁 Heavy‑Lift UAVs (Agriculture / Logistics / Surveillance) – High torque density laminations for efficient long‑endurance flight.
• 🤖 Robotics & Servo Motors – Precise geometry for smooth motion control and low cogging torque.
• 🔧 Industrial BLDC pumps, compressors, e‑scooters & e‑bikes – Reliable performance under continuous high‑load operation.

Figure 2: Custom silicon steel laminations integrated into a high‑power UAV propulsion system.

📐 Engineering Selection Guide – 5 Steps to Optimal Silicon Steel Laminations

Follow this structured methodology to specify the best silicon steel laminations for your BLDC design (based on Reenives application engineers' recommendations):

1. Step 1 – Define motor electrical frequency & RPM range: For >1 kHz (FPV racing), select 0.15–0.20mm laminations. For industrial UAV (<800 Hz), 0.27–0.35mm is cost‑effective.
2. Step 2 – Calculate core loss budget: Use iron loss curves (provided by Reenives) to avoid thermal runaway. Target total core loss <5% of rated power.
3. Step 3 – Choose insulation coating type: Epoxy powder coating (Reenives standard) offers best thermal stability and dielectric strength for high‑voltage ESCs.
4. Step 4 – Specify stacking factor & bonding method: Request ≥97% stacking factor with epoxy bonding to maximize magnetic flux.
5. Step 5 – Prototype & validate: Order custom samples (5‑7 days), perform back‑EMF and temperature rise tests. Reenives supports private mould development with low MOQ.

✅ Pro tip: Provide your target stator slot dimensions and winding configuration – our engineers will recommend optimal lamination tooth profile and silicon steel grade.

❓ FAQ – Engineer's Silicon Steel Lamination Technical Pain Points

📢 Summary & Get Your Custom Silicon Steel Laminations

Selecting high‑quality silicon steel laminations is the most critical decision for achieving superior power density, thermal stability, and flight time in drone and FPV motors. Reenives combines ultra‑thin NGO silicon steel, advanced epoxy coating lines, and dust‑free production to deliver laminations that outperform industry standards. As a Drone Silicon Steel Laminations Manufacturer in China, we offer rapid prototyping, private mould development, and global shipping with full export qualifications.

🏭 Dongguan Runlu Motor Technology Co., Ltd.

⚡ Reenives is a professional drone stator core manufacturer, founded in 2022. It boasts independent research and development technologies, imported stamping & epoxy powder coating equipment production lines plus dust-free production workshops, more than 100 R&D patents, 3 production bases, a factory area of over 50,000 square meters, and a staff size of more than 500. From production to sales, we support bulk purchasing, private mould develop , and samples making , and can provide tailor-made perfect solutions for your production and usage scenarios. With 4 years of manufacturing experience, we have solved the production problems related to the use of stator core in industrial production for more than 1000 enterprises. We can ship globally (with complete export qualifications). Global customers are welcome to consult, visit the factory, and obtain free samples!
