0.2mm Lamination Stator: The Ultra-Thin Core for High-Efficiency Drone Motors & Advanced BLDC

🔥 The real engineering pain: High-frequency losses, excessive heat, and limited flight endurance — all directly linked to stator core material thickness. Standard 0.35mm laminations cause >20% eddy current losses at drone PWM frequencies (>30kHz). Upgrade to 0.2mm lamination stator technology is the proven answer.

✅ Reenives: 0.2mm Drone Motor Lamination Stator Core Manufacturer in China delivers precision-stamped, ultra-low-loss stator stacks engineered for next-gen UAV propulsion and high-speed brushless motors.

📖 Technical Roadmap

1. What is 0.2mm Lamination Stator?
2. Classification & Material Selection
3. Performance Parameters & Data Sources
4. Applications: Drone & High-Speed Motors
5. Engineering Selection Process (5 Steps)
6. Technical FAQ – 0.2mm Stator Core Insights
7. Prototype & Bulk Solutions – CTA
8. Dongguan Runlu Motor Technology Co., Ltd. (Reenives)

🔬 1. What is a 0.2mm Lamination Stator? (Ultra-Thin Core Advantage)

A 0.2mm lamination stator refers to the electromagnetic core built from non-oriented electrical steel with a thickness of 0.20mm (or 0.15mm on request). Each lamination is precision blanked, stacked, and bonded or welded, forming the stationary part of brushless motors. The ultra-thin gauge drastically reduces eddy current losses at high electrical frequencies (>1kHz) — critical for drone motors that routinely operate at 30,000–80,000 RPM. For UAV propulsion, a 0.2mm stator core improves motor efficiency by 4–7% compared to 0.35mm stacks, directly extending flight time and reducing thermal stress.

0.2mm lamination stator stack for drone motor - Reenives manufacturing

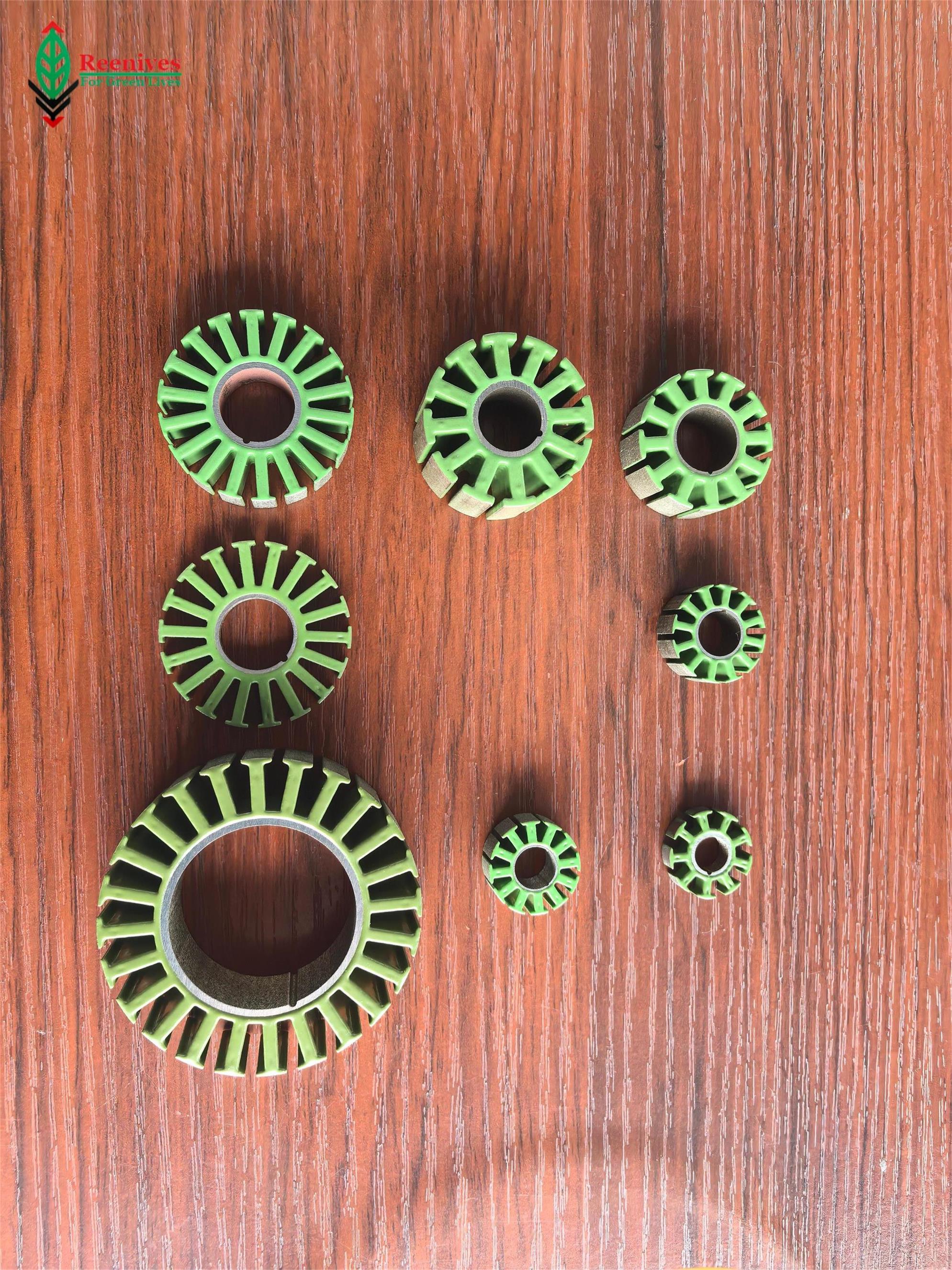

Figure 1: High-density 0.2mm stator lamination core with C5 insulation, optimized for high-frequency UAV brushless motors (Reenives proprietary progressive die).

🏷️ 2. Classification: Steel Grade, Coating & Stacking Method

Material thickness: 0.20mm / 0.15mm ultra-thin grades (35W250, 20WV1200 equivalent). Suitable for >30kHz switching.
Magnetic coating: C3 (standard insulation) or C5 epoxy-powder coating offering >180°C thermal stability and high dielectric strength.
Stacking architecture: Interlocking (self-bonding) for high-volume consistency or laser-welded for heavy-duty industrial motors.
Geometry: Monolithic stator (12mm–80mm OD) for compact drone motors; segmented stator for large-diameter industrial BLDC.

📊 3. Technical Parameters & Verified Data (0.2mm Grade)

All parameters validated per IEC 60404-2 and GB/T 3655-2022 standards, sourced from Reenives in-house metrology lab and third-party SGS verification.

Parameter	Value / Tolerance (0.2mm Core)	Test Standard / Source
Material Thickness	0.20mm ±0.008mm (0.15mm on request)	Micrometer / ASTM A677
Core Loss P1.0/400 (W/kg)	≤ 9.8 W/kg @ 1.0T, 400Hz	Epstein Frame / IEC 60404-2
Magnetic Flux Density B50 (T)	≥ 1.68 T	Single Strip Tester
Stack Height Tolerance	±0.04mm (height ≤50mm) / ±0.06mm (above)	OGP CMM / Reenives QA
Insulation Coating Type	C5 epoxy resin, >1300V dielectric strength	ASTM D149 / UL 1446
Burr Height (Max)	≤ 0.03mm (progressive die controlled)	Vision inspection, ISO 2768-m
Operating Temperature	-40°C ~ 180°C (peak 200°C)	Thermal chamber / Reenives validation

Data source: Reenives internal test report #RS-2420-05 & SGS certification (available upon request). Loss values show up to 22% reduction vs conventional 0.35mm grade.

✈️ 4. Core Applications: Drone Motors & Universal Brushless Platforms

0.2mm lamination stators excel in applications demanding high power density and low core loss:

🚁 Drone & UAV motors (FPV racing, agricultural spraying, eVTOL) – reduced iron loss at partial loads, extended hovering time.
⚙️ High-speed spindle motors (PCB drilling, dental turbines) – minimal heat generation at >50,000 RPM.
🔧 Robotic servo / collaborative robots – superior torque ripple suppression.
🏭 Industrial BLDC fans & pumps – IE5 efficiency class viable.

Drone motor assembly using 0.2mm lamination stator core

Figure 2: 0.2mm ultra-thin stator stack integrated into high-end UAV brushless motor – optimised cogging torque & efficiency.

📐 5. 5-Step Engineering Guide: Specifying a 0.2mm Lamination Stator

Step 1 – Frequency & RPM
Identify max electrical frequency. For >2kHz, select 0.2mm (or 0.15mm) steel.

Step 2 – Geometric envelope
Define stator OD/ID, stack length, slot geometry. Provide 2D/3D model.

Step 3 – Thermal + Coating
Choose C5 epoxy coating if continuous operation >150°C (drone intensive climbing).

Step 4 – Joining method
Interlocking for automated assembly; laser welding for extreme vibration (heavy lift drones).

Step 5 – Validation & samples
Request prototype stacks & iron loss report from Reenives. FEM simulation optional.

👉 Reenives technical team provides free DFM analysis within 24 hours. Share your motor specs → optimized 0.2mm lamination stator proposal.
