What Is a Brushless DC Motor Stator?

A brushless DC (BLDC) motor stator is the stationary electromagnetic core of the motor. It is typically made from laminated silicon steel with slots that house copper windings. When current flows through the windings, the stator generates a rotating magnetic field that drives the permanent-magnet rotor — the rotating part that produces torque and motion.

In an EPS (Electric Power Steering) motor, the BLDC stator is the heart of the steering assist system. It must deliver precise, smooth torque at low speeds while remaining compact, quiet, and highly reliable — because failure means loss of steering assist. In drone BLDC motors, the stator must deliver high torque density and efficiency at high RPM.

Regardless of application, the stator core directly affects:

• Torque output & torque ripple
• Motor efficiency & heat generation
• Cogging torque, vibration & acoustic noise (NVH)
• Power density & thermal management

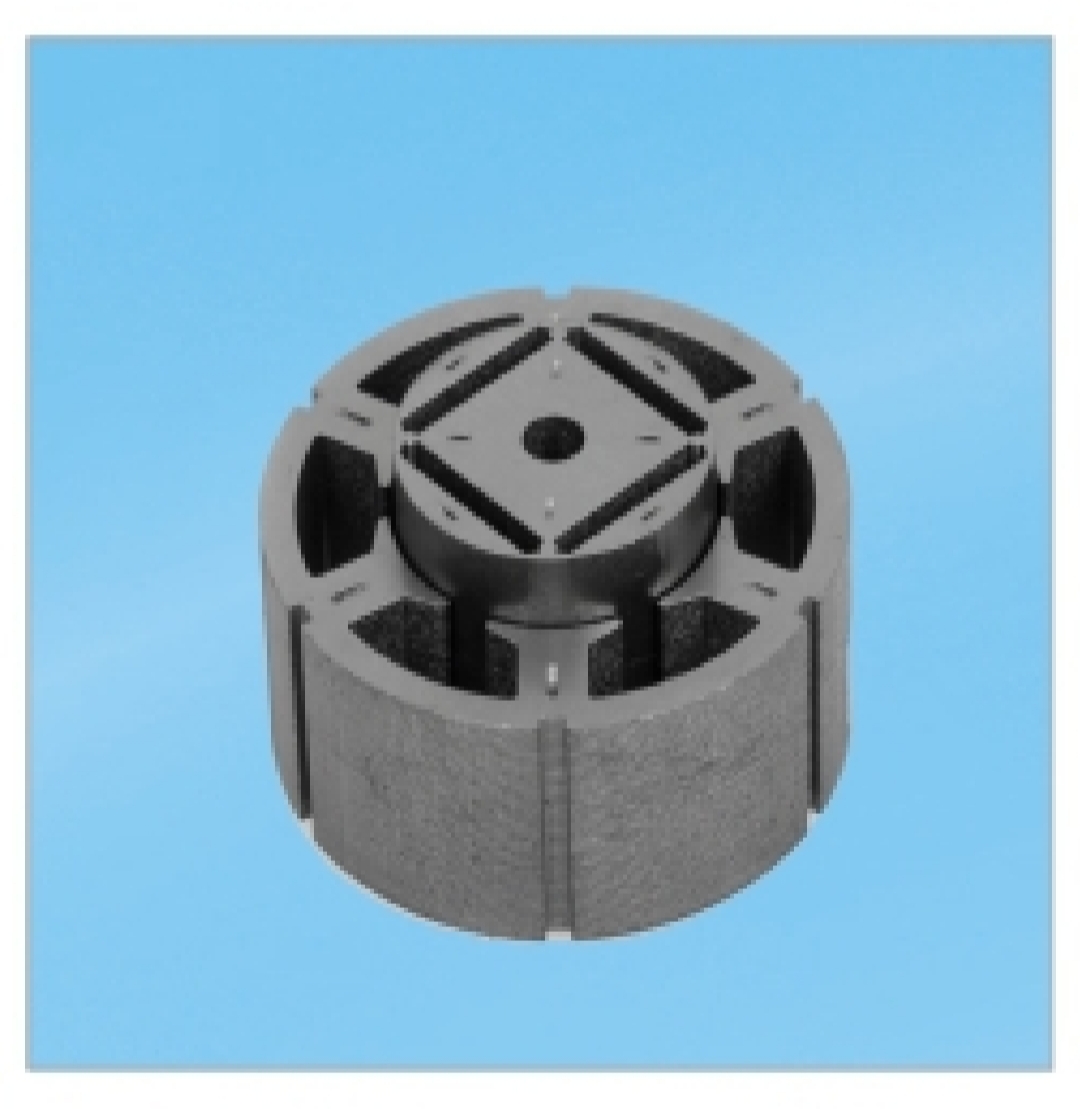

Precision EPS & BLDC motor stator cores — manufactured by Reenives with imported high-speed stamping & epoxy powder coating lines.

Why EPS Motor Stator Is Important in Brushless DC Motor?

The EPS motor stator is critical because it determines the fundamental performance, safety, and comfort characteristics of the electric power steering system. Here is why it matters so much:

• Torque Precision & Steering Feel — The stator's slot/pole design and winding configuration determine torque linearity and ripple. A poorly designed stator causes uneven steering assist, making the steering feel jerky or vague.
• NVH (Noise, Vibration, Harshness) — Cogging torque and electromagnetic noise originate largely from the stator core geometry and lamination quality. Drivers expect silent, smooth steering — especially in electric vehicles.
• Thermal Performance & Reliability — EPS motors operate in the engine bay or under the dashboard, where temperatures are high. Low core loss stator cores reduce heat generation, extending motor and ECU life.
• Safety-Critical Redundancy — EPS is a safety-critical system. A stator core with consistent magnetic properties and tight tolerances ensures predictable, fail-safe operation.
• Compactness & Power Density — Space is limited in modern vehicles. High-slot-fill stator designs deliver more torque in a smaller package.
• Efficiency & Fuel/Energy Savings — Lower core loss means less electrical energy wasted as heat, improving overall vehicle efficiency.

The same principles apply to drone BLDC motors: a well-designed stator core delivers more thrust, longer flight time, and smoother control. For both EPS and UAV applications, the stator core is not a commodity — it is a performance-critical component.

Key Specifications & Data

Below are typical specifications for Reenives stator cores used in EPS, drone, and general BLDC motors. Custom values are available upon request.

Data source: Reenives internal testing & supplier material datasheets, 2024. Actual values may vary by design.

Applications: EPS, Drone & Beyond

Reenives stator cores are used across a wide range of BLDC motor applications:

• EPS (Electric Power Steering) Motors — Low cogging torque, low NVH stators for smooth, precise steering assist.
• FPV Racing Drones — High RPM, lightweight stators with low cogging torque.
• Cinematic & Photography Drones — Smooth, vibration-free stators for stable aerial footage.
• Agricultural Spraying Drones — Corrosion-resistant epoxy-coated stators for harsh chemical environments.
• Industrial Inspection Drones — High-torque stators for long endurance and heavy payloads.
• eVTOL & UAV Propulsion — Custom high-power stators for next-generation air mobility.
• Robot Actuators — Low cogging torque stators for precise motion control.
• General BLDC Motors — Fans, pumps, power tools, and automotive actuators.

Reenives stator cores power EPS systems, FPV racing drones, agricultural UAVs, and industrial BLDC motors worldwide.

How to Select the Right Stator Core for EPS & BLDC Motors

Choosing the correct stator core for your EPS or BLDC motor involves several engineering decisions. Follow these steps:

1. Determine Application Requirements — EPS motors prioritize low cogging torque and low NVH; drone motors prioritize high torque density and high RPM efficiency.
2. Determine Required Torque & RPM — Higher torque needs more stack length or larger diameter. High RPM demands thinner laminations and low-loss material.
3. Select Slot/Pole Combination — EPS motors often use higher pole counts for smoothness; drone motors commonly use 12S/14P or 9S/6P.
4. Choose Lamination Thickness — For high-frequency operation (e.g., 400Hz+), use 0.20 mm laminations to reduce eddy current losses.
5. Select Material Grade — Lower-loss silicon steel grades (e.g., 35WW250) reduce heat but cost more. Balance performance and budget.
6. Decide on Assembly Method — Interlocked, bonded, or segmented stators each have trade-offs in cost, NVH, and performance.
7. Verify Tolerances & Stacking Factor — Tight tolerances and high stacking factor ensure proper magnetic performance and reduce vibration.
8. Request Samples & Test — Reenives provides free samples for qualified projects. Test core loss, cogging torque, temperature rise, and mechanical fit.
