How to make vehicle oil pump BLDC Motor？

Below is a structured overview of the process, suitable for engineers or advanced enthusiasts.

Key Components to Design & Integrate

1. Hydraulic Pump Unit

   • Type: Gerotor, gear, or vane pump.

   • Materials: Aluminum housing, hardened steel rotors/gears.

   • Flow Rate: 5–20 L/min (varies by vehicle).

   • Pressure: 1–5 bar (engine oil) or higher (transmission).

2. BLDC Motor

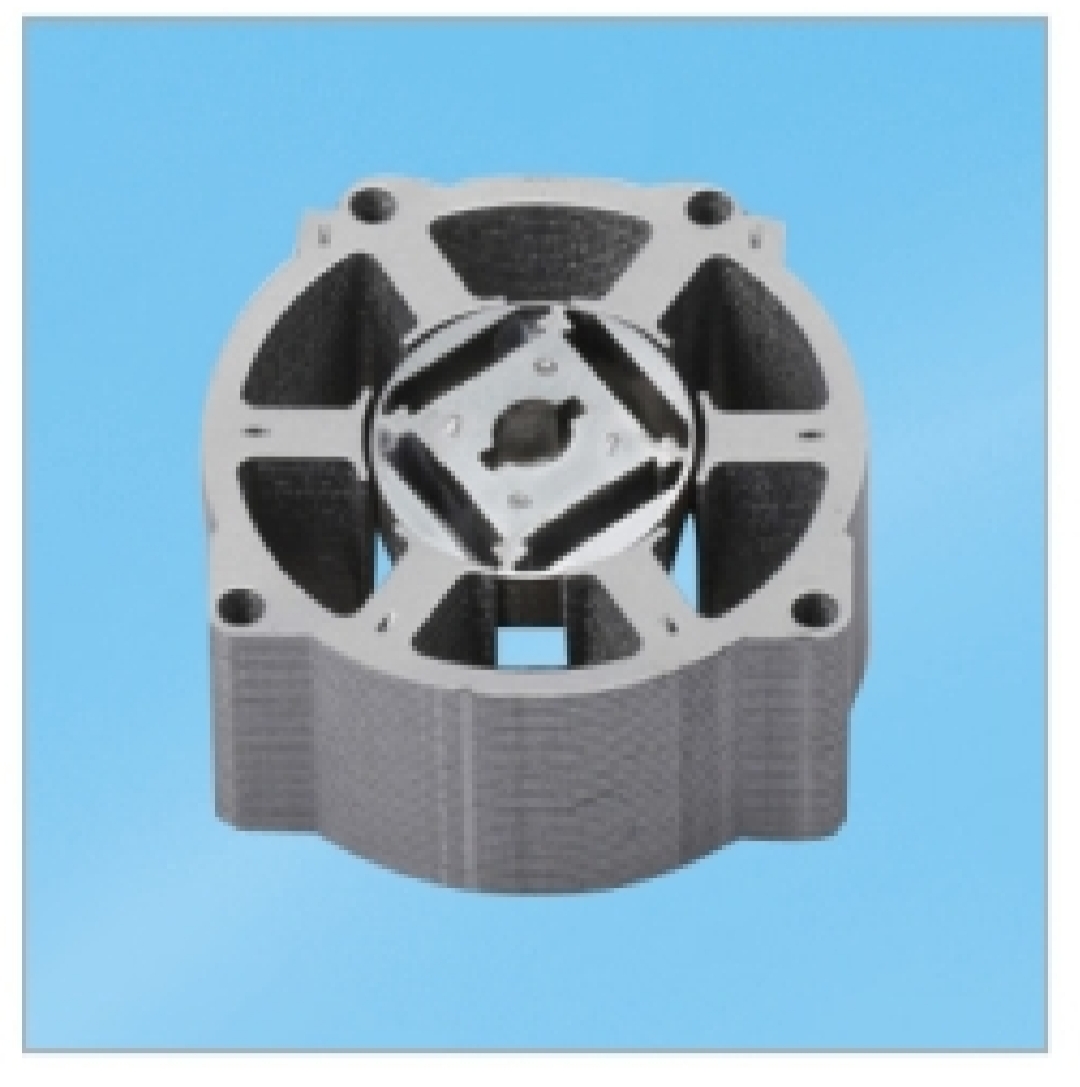

   • Topology: Radial flux, 4–12 poles.

   • Stator: Laminated steel core + 3-phase windings (concentrated or distributed).

   • Rotor: Permanent magnets (NdFeB or SmCo), surface-mounted or interior.

   • Sensors: Hall effect sensors (for commutation) or sensorless design.

3. Electronic Controller (ECU)

   • Microcontroller: ARM Cortex-M or automotive-grade MCU (e.g., Infineon Aurix).

   • Power Stage: 3-phase inverter (MOSFETs or IGBTs).

   • Communication: CAN bus/LIN bus for vehicle integration.

4. Sealing & Housing

   • IP Rating: IP67/IP69K (dust/waterproof).

   • Materials: Aluminum alloy (lightweight, corrosion-resistant).

Step-by-Step Development Process

1. Define Requirements

• Performance: Flow rate, pressure, efficiency (e.g., >80%).

• Electrical: Voltage (12V/24V/48V/400V), max current, EMI/EMC compliance.

• Environmental: Temperature range (-40°C to +150°C), vibration (ISO 16750).

2. Electromagnetic Design

• Motor Sizing: Use tools like Motor-CAD or ANSYS Maxwell to:

  • Optimize torque/power density.

  • Minimize cogging torque & losses (core/copper).

• Magnet Layout: Avoid demagnetization at high temps.

3. Thermal & Mechanical Design

• Cooling: Oil-cooled stator/windings (integrated flow paths).

• Structural Analysis: Finite Element Analysis (FEA) for:

  • Vibration resistance.

  • Rotor dynamic stability.

4. Power Electronics & Control

• Controller PCB:

  • Gate drivers, current sensors, temperature sensors.

  • Firmware for FOC (Field-Oriented Control) or trapezoidal commutation.

• Protection: Overcurrent, overtemperature, stall detection.

5. Pump-Hydraulics Design

• CFD Simulation: Use ANSYS Fluent or Simerics MP+ to:

  • Optimize inlet/outlet ports.

  • Minimize cavitation & pressure pulsations.

6. Prototyping & Testing

• Prototype Assembly:

  • CNC-machined housing, custom wound stator, laser-balanced rotor.

• Validation Tests:

  • Performance: Flow/pressure vs. speed (e.g., 1,000–8,000 RPM).

  • Durability: 500+ hours of thermal cycling & vibration tests.

  • EMC: ISO 11452-2 (radiated immunity) & CISPR 25 (emissions).

7. Production

• Automated Manufacturing:

  • Stator winding (needle winding machines).

  • Magnet bonding/rotor assembly.

  • Hermetic sealing (laser welding/epoxy).

• QC Checks: 100% tested for noise, efficiency, leakage.

Critical Challenges & Solutions

Tools & Resources

• Simulation: ANSYS Suite, Motor-CAD, COMSOL.

• Components: Magnets (Hitachi Metals), MOSFETs (Infineon), MCUs (NXP, STMicro).

• Standards: ISO 16750 (environmental), SAE J1455 (EMC), ISO 26262 (functional safety).

Practical Advice

• Start with COTS (Commercial Off-The-Shelf): Modify existing BLDC pumps (e.g., from Pierburg or Rheinmetall) for prototyping.

• Collaborate: Partner with motor manufacturers (e.g., Nidec, Bosch) for stator/rotor tooling.

• Safety First: High-pressure oil systems can be hazardous—include pressure relief valves.

? Note: Developing a production-ready automotive BLDC oil pump requires a multi-disciplinary team and rigorous validation. For DIY projects, focus on modifying existing systems or building low-pressure demonstrators.

Let me know if you need details on a specific phase (e.g., motor winding techniques or control algorithms)!
