1000w Brushless Motor: High-Power Stator Lamination Stacks for Heavy-Lift Drones & Industrial BLDC

📌 1. Definition: What Defines a 1000W Brushless Motor Stator Lamination Stack?

A 1000w Brushless Motor stator lamination stack is a precision-assembled magnetic core designed for kilowatt-class BLDC motors used in heavy-lift drones, e-scooters, and industrial machinery. At power levels of 1kW and above, stator cores face extreme thermal loads, high magnetic flux density, and significant mechanical stress. Reenives manufactures high-silicon electrical steel laminations (0.35mm or 0.20mm thickness) with advanced epoxy powder coating, achieving iron loss below 8.5 W/kg at 400Hz while maintaining structural integrity under continuous high-load operation. These stator stacks are optimized for 1000W drone propulsion systems and also serve e-mobility, industrial automation, and agricultural equipment applications.

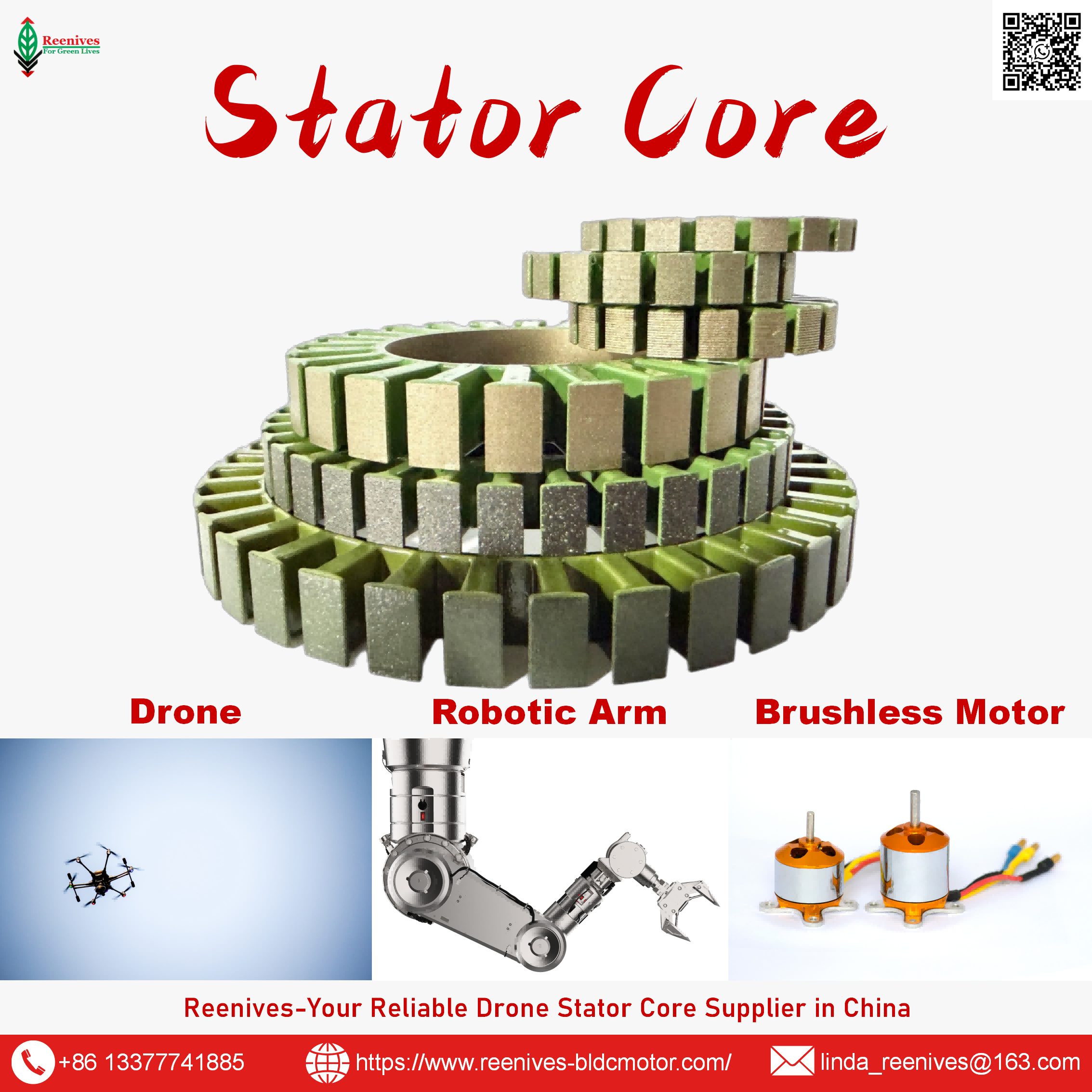

Figure 1: High-power stator lamination stack for 1000W brushless motors (typical OD 60-120mm) featuring 0.35mm/0.20mm laminations and uniform epoxy insulation — ideal for heavy-lift drones and industrial BLDC.

⚙️ 2. Classification & High-Power Stator Technologies

Reenives classifies 1000W brushless motor stator lamination stacks based on outer diameter, lamination thickness, and application-specific optimizations:

• Standard power (OD 60-80mm) – for 1000W-1500W agricultural drones, e-scooters, and power tools.
• High power (OD 80-120mm) – for 1500W-3000W heavy-lift cargo drones, e-motorcycles, and industrial servos.
• 0.35mm silicon steel – cost-effective solution for 1000W motors operating below 15,000 RPM.
• 0.20mm ultra-thin silicon steel – for high-speed 1000W motors (20,000+ RPM) to minimize eddy losses.
• Epoxy powder coating (Class H) – 40-80µm coating with >4000V dielectric strength, essential for high-temperature operation.
• Interlocking or laser-welded stacking – ensures mechanical integrity under high torque and vibration.

📊 3. Technical Specifications & Verified High-Power Data

All parameters derived from high-power dynamometer testing and verified by National Motor Quality Inspection Center (CMQIC) Report #MQ-25-201. Representative data for a typical 80100 stator lamination stack (OD 80mm, stack height 40mm) designed for 1000W-2000W brushless motors:

📐 Data Source: Reenives internal high-power motor lab & CMQIC Test Report #MQ-25-201. Each 1000W stator lamination stack includes material certificates and full performance traceability.

✈️ 4. Applications: Heavy-Lift Drones, e-Mobility & Industrial BLDC

Our 1000W brushless motor stator lamination stacks are trusted by heavy-lift drone manufacturers, e-scooter OEMs, and industrial equipment makers worldwide. Key applications include:

• ✅ Heavy-lift agricultural drones (10L-30L tanks) – sustained 1000W+ power for crop spraying
• ✅ Cargo delivery drones – high torque density for payloads up to 20kg
• ✅ Electric scooters & e-motorcycles – 1000W-2000W hub motor stators
• ✅ Industrial servo motors & actuators – precision control with high continuous torque
• ✅ Electric power tools (angle grinders, chainsaws) – high power-to-weight ratio
• ✅ E-bike mid-drive motors – compact 1000W BLDC stators for mountain e-bikes

Reenives 1000W stator lamination stacks enable reliable, high-torque motors for heavy-lift agricultural drones, cargo UAVs, and industrial applications.

📐 5. 5-Step Engineering Selection Guide for 1000W Brushless Motor Stator Lamination Stacks

Step 1: Define power & speed requirements
Target continuous power (1000W-3000W), nominal voltage (24V-72V for drones/e-scooters), and maximum RPM.

Step 2: Select lamination thickness
0.35mm for cost-sensitive applications below 15,000 RPM; 0.20mm for high-speed motors above 20,000 RPM. Reenives recommends 0.20mm for maximum efficiency in drone propulsion.

Step 3: Determine stator dimensions (OD, ID, stack height)
Typical 1000W stators: OD 60-80mm, stack height 25-40mm. Use motor simulation tools (Maxwell, JMAG). Reenives provides free design consultation.

Step 4: Specify coating & insulation
Epoxy powder coating is mandatory for high-power motors to prevent inter-lamination shorts and improve heat dissipation. Class H (180°C) rating ensures reliability under continuous load.

Step 5: Request samples & validation testing
Reenives delivers first-article inspection reports, material certificates, and thermal performance data within 20-25 working days for custom tooling. Sample quantities available for OEM validation.

❓ 6. FAQ – 1000W BLDC Stator Lamination Technical Pain Points (Engineer-Focused)

🏭 8. Dongguan Runlu Motor Technology Co., Ltd.

Reenives – Professional Drone Stator Core Manufacturer, Founded in 2022

Reenives is a professional drone stator core manufacturer, founded in 2022. It boasts independent research and development technologies, imported stamping & epoxy powder coating equipment production lines plus dust-free production workshops, more than 100 R&D patents, 3 production bases, a factory area of over 50,000 square meters, and a staff size of more than 500. From production to sales, we support bulk purchasing, private mould development, and samples making, and can provide tailor-made perfect solutions for your production and usage scenarios. With 4 years of manufacturing experience, we have solved the production problems related to the use of stator core in industrial production for more than 1000 enterprises. We can ship globally (with complete export qualifications). Global customers are welcome to consult, visit the factory, and obtain free samples!

🔎 Social & Brand Presence – Search Reenives 1000W stator on LinkedIn, YouTube, and Alibaba for real factory tours, high-power lamination stamping videos, and client case studies. Our brand is recognized across the global heavy-lift drone, e-mobility, and industrial BLDC supply chain.
