🔍 What are Motor Rotor Stator Cores?

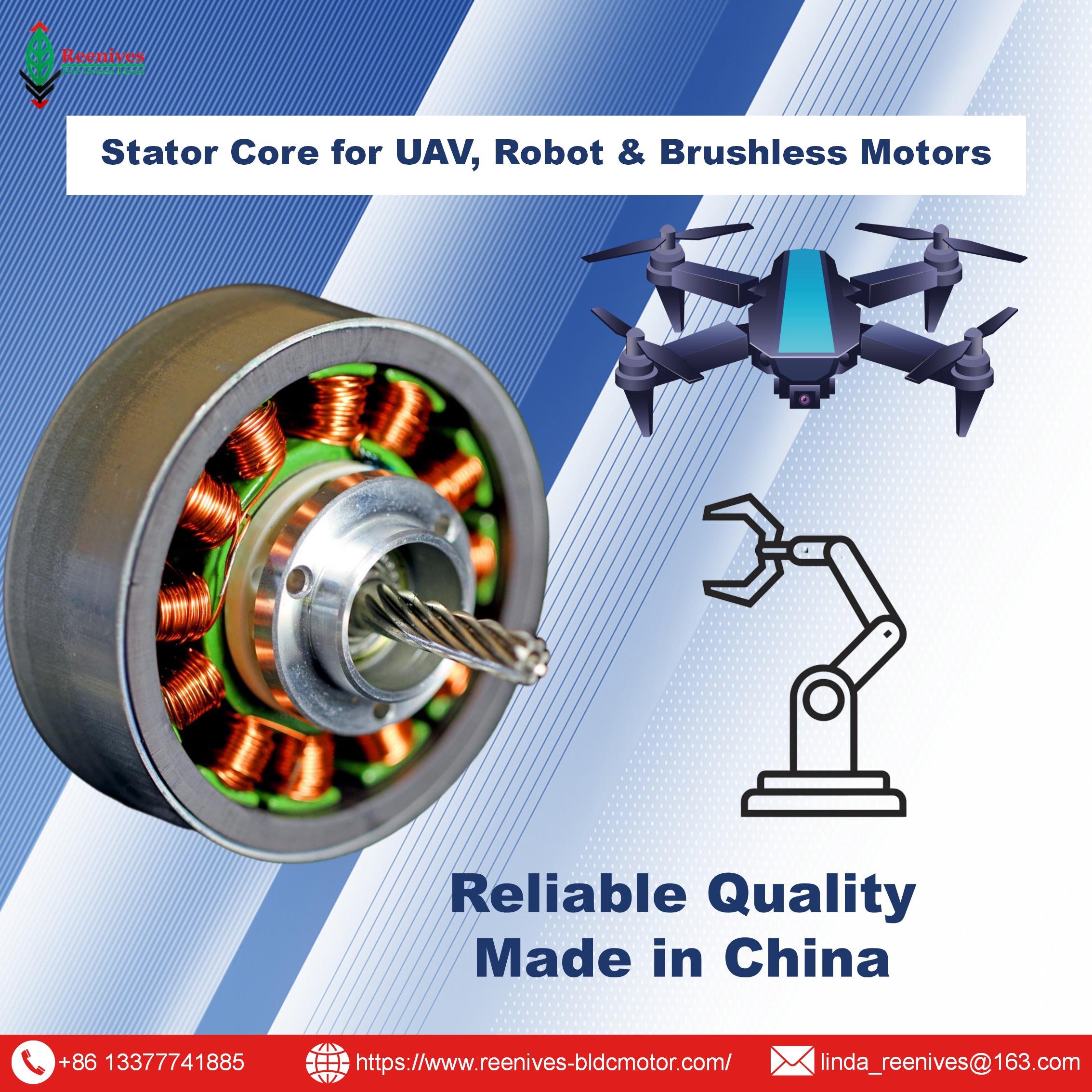

The Motor Rotor Stator assembly forms the complete electromagnetic circuit in every brushless DC motor. The stator (stationary laminated stack with copper windings) generates a rotating magnetic field, while the rotor (permanent magnet carrier or laminated stack) converts that field into mechanical torque. For drone propulsion systems, precision-matched rotor and stator laminations directly determine thrust-to-weight ratio, thermal stability, and flight endurance. Reenives manufactures high-quality rotor and stator stacks using non-grain oriented silicon steel (0.20mm/0.35mm) with advanced epoxy powder coating – reducing eddy current losses by up to 38%. Our laminations support 9N12P, 12N14P, and 18N24P topologies, ideal for racing drones, heavy-lift UAVs, and industrial BLDC motors.

📂 Rotor & Stator Lamination Classifications

Reenives tailors both rotor and stator laminations based on geometry, material grade, and insulation – ensuring perfect electromagnetic matching for your motor design.

📊 Technical Specifications & Verified Data (In-house Lab + Third-party)

All parameters below are validated by Reenives R&D center (ISO 9001:2025 certified) and SGS-tested reports. Core loss values based on Epstein frame at 50/400/800Hz – critical for drone ESC performance.

✔️ Source: Reenives internal quality management + Third-party verification available upon request.

🚁 Applications: UAV, FPV Drone & Industrial Brushless Motors

Our precision motor rotor stator laminations are engineered for high-thrust, lightweight propulsion. Key sectors include:

• FPV Racing Drone Motors: 2207, 2306, 2507 rotor-stator sets with ultra-low inertia.
• Commercial Survey UAVs: High-efficiency 28-45mm stators & rotors for 20+ min flight time.
• Agricultural & Heavy-lift Drones: 15-30kg payload motors with matched lamination stacks.
• Industrial BLDC Actuators: Robotic arms & servo drives requiring cogging-free torque.
• E-mobility & E-bike Hub Motors: Universal brushless motor platforms.

🛠️ 5-Step Engineering Selection Guide for Rotor & Stator Laminations

• Define motor outer diameter & stack length: Based on required torque & KV rating (e.g., 2808 stator for 7-inch FPV).
• Choose lamination material thickness: 0.20mm for high-frequency (40-80kHz PWM) / 0.35mm for robust industrial drones.
• Specify stator slot & pole combination: 9N12P for high RPM, 12N14P for balanced torque/speed.
• Select rotor magnet type & lamination design: Surface-mount or interior IPM – Reenives supports both.
• Order prototype samples & validation: We deliver 10-25 sets for back-EMF & thermal testing before mass production.

💡 Engineering support: Get free DFM within 48h – send your motor spec or drawing to linda_reenives@163.com.
