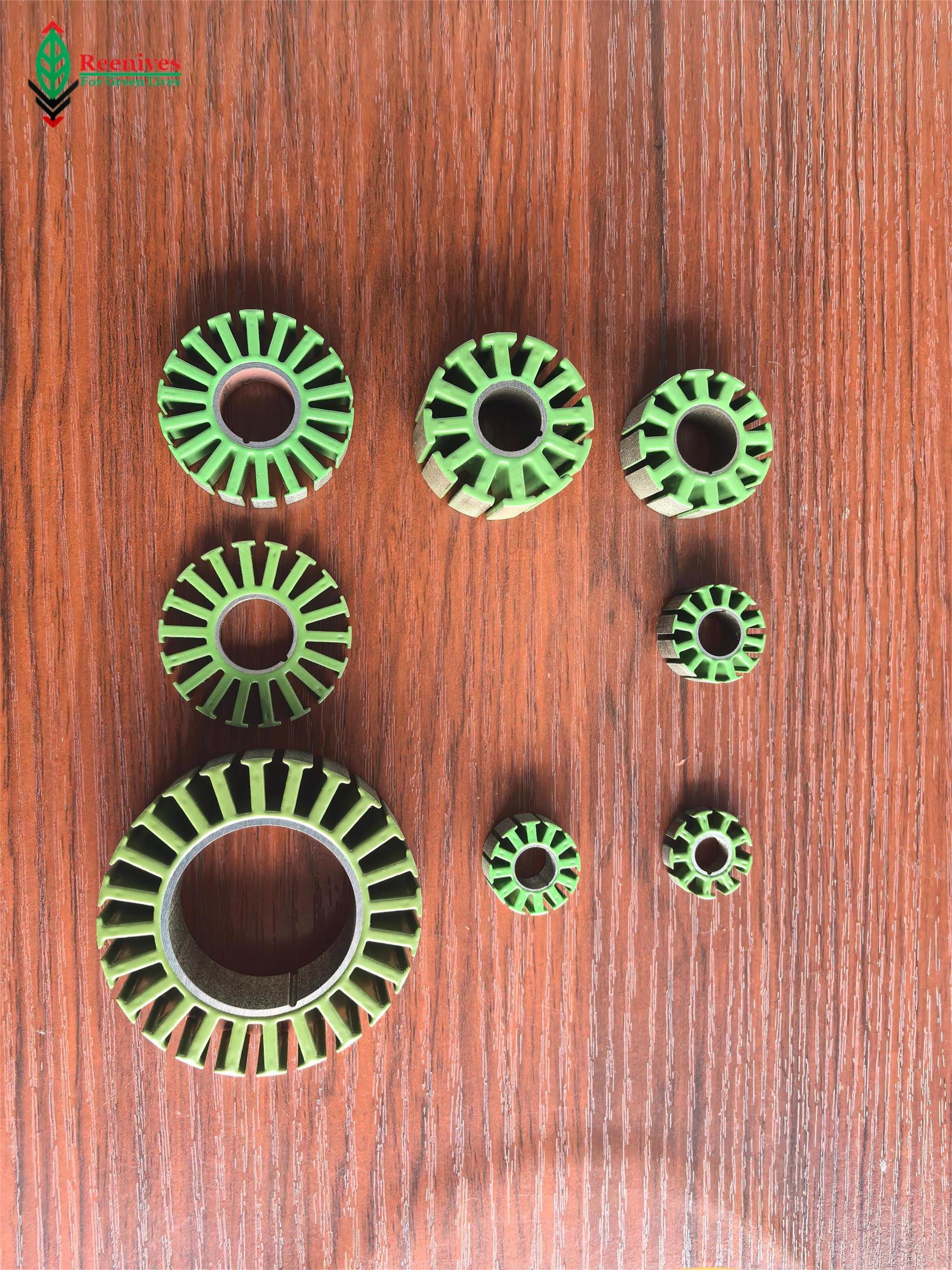

Laminations for UAV & FPV Drone Motors: Precision Stator Stacks for Gimbal & Propulsion Systems

✈️ Drone engineers & procurement leaders worldwide: Whether you're designing a high‑torque propulsion motor or a smooth gimbal actuator, the quality of your stator laminations determines performance. Reenives delivers globally‑trusted lamination stacks with ultra‑low iron loss (≤9.5 W/kg), high stacking factor (≥97.5%), and 100% dimensional inspection. As Reenives: Global Leading UAV FPV Drone Gimbal Motor Stator Lamination Stacks Manufacturer, we combine advanced stamping, epoxy coating, and secure logistics to serve drone innovators across Europe, Americas, and Asia.

🔍 What Are Stator Laminations for Drone Motors?

Stator laminations are thin, insulated electrical steel sheets stacked to form the fixed core of a brushless motor. In UAV/FPV drones, laminations directly impact eddy current losses, torque smoothness, and thermal management. Reenives produces precision laminations using non‑grain oriented (NGO) silicon steel (0.20mm, 0.35mm) with tight tolerances: concentricity ≤0.02mm, burr height ≤0.03mm, and coating resistance >12 Ω·cm². Our global‑leading manufacturing ensures batch‑to‑batch consistency for high‑volume drone production.

📂 Classification of Stator Lamination Stacks

Reenives offers a full range of lamination stacks tailored to different drone motor types:

• By thickness: 0.20mm (high‑frequency FPV & gimbal, 20–50kHz), 0.35mm (general UAV propulsion), 0.50mm (industrial BLDC).
• By insulation coating: C3 (organic), C5 (epoxy+inorganic, weldable), C6 (high insulation), and full epoxy powder coating (corrosion‑proof for outdoor UAVs).
• By stacking method: Interlocking (self‑bonded), laser welding (high vibration resistance), adhesive bonding (lowest eddy loss).
• By magnetic grade: 20PN1200 (ultra‑low loss), 35PN210 (high saturation), 50A1300 (economy).

📊 Lamination Parameters & Global Standards (IEC / ASTM / JIS)

All Reenives lamination stacks are manufactured and tested per international standards. Below are guaranteed specifications for drone‑grade laminations:

Global compliance: All laminations meet RoHS, REACH, and conflict mineral standards. Third‑party test reports available.

✈️ Applications: UAV Propulsion, FPV Racing, Gimbal & Industrial BLDC

Reenives lamination stacks are engineered for high‑dynamic and high‑reliability applications:

• FPV racing drones (2207, 2306, 2507) – ultra‑low eddy loss for instant throttle response.
• Cinematic UAVs & heavy‑lift hexacopters – high torque density with reduced thermal rise.
• 3‑axis gimbal motors – ultra‑smooth rotation with minimized cogging torque (tested <1% ripple).
• VTOL propulsion systems – reliable laminations for transition flight phases.
• Industrial BLDC actuators & e‑scooter hub motors – universal compatibility.

⚙️ Engineer’s 5‑Step Selection for Stator Lamination Stacks

Follow these steps to select the optimal laminations for your drone motor design:

1. Define operating frequency & target RPM: For gimbal or FPV motors >20kHz → 0.20mm laminations. For propulsion <15kHz → 0.35mm is cost‑effective.
2. Select magnetic grade based on torque density: 20PN1200 (B50 ≥1.70T) for peak torque; 35PN210 for balance of cost/performance.
3. Provide stator geometry (slot/pole design): Outer diameter, inner diameter, slot profile. Reenives supports private moulds with 15‑20 day tooling.
4. Choose coating & insulation: C5 epoxy for standard drones; full epoxy powder coating for high‑humidity or salt‑fog environments.
5. Request simulation & prototype: Reenives offers JMAG‑based core loss analysis free for qualified projects, followed by sample laminations (50 pcs min) within 10–12 days.

📌 Pro tip: For gimbal motors, specify extra low cogging torque laminations — Reenives achieves this through optimized slot geometry and tight concentricity control.

❓ FAQ – Lamination Technical Pain Points (Engineer Focused)

📢 Summary & Request Your Global‑Grade Lamination Sample

🏭 Dongguan Runlu Motor Technology Co., Ltd.
