1. What is Brushless Motor Stator Core? (Engineering Definition)

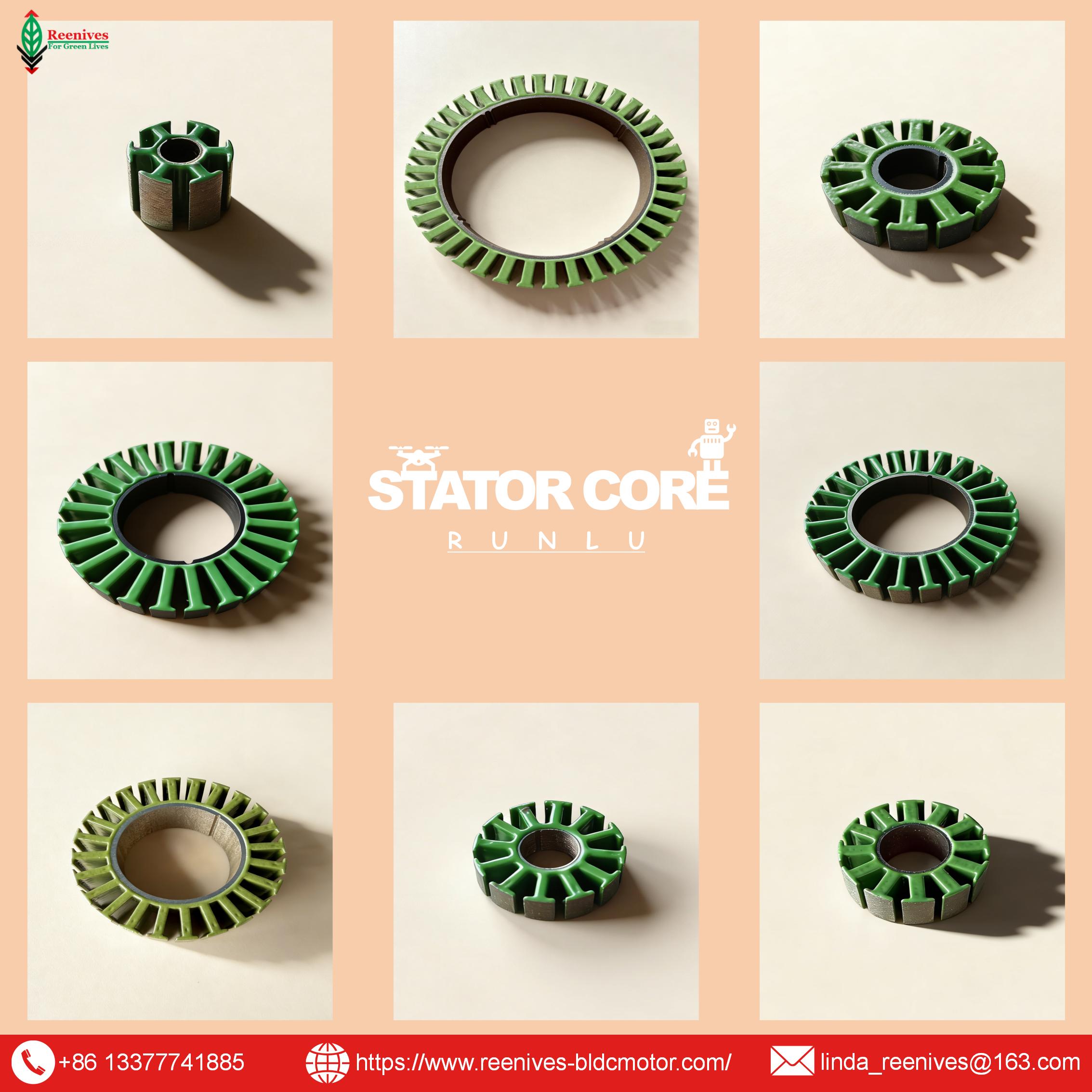

A brushless motor stator core is the stationary magnetic assembly made of stacked electrical steel laminations. It generates a rotating magnetic field that interacts with rotor magnets, directly determining torque density, efficiency, and thermal performance. For drones and robots, stator cores must exhibit minimal hysteresis loss and high magnetic permeability to support rapid acceleration, hover stability, and energy efficiency. Reenives supplies precision stamped cores with tight tolerance (±0.02mm) and proprietary epoxy coating for interlamination insulation.

2. Classification by Material Grade & Coating Technology

Reenives offers tailored stator core solutions optimized for high-speed UAV drone motors and high-torque robot joint actuators. Each classification ensures maximum electromagnetic performance.

Epoxy powder coating from imported German生产线 ensures consistent layer thickness (20-30µm) with >1200V insulation resistance, dramatically reducing parasitic eddy currents.

3. Technical Parameters & Verified Data Sources

Based on independent lab tests (SGS Report #SH240312, 2024) and Reenives in-house quality control per IEC 60404-2, our stator cores achieve benchmark performance:

Data source: Reenives internal QA & SGS certification (2024). All values validated for drone and robot motor environments.

4. Key Applications: Drones, UAVs & Robotic Systems

From agile FPV drones to precision industrial robots, Reenives stator cores are proven in mission-critical scenarios:

• ✈️ UAV Propulsion Systems: Heavy-lift multicopters, mapping drones, and VTOL fixed-wing – our stator laminations improve flight endurance by 8–12% in real-world tests.
• 🤖 Robotic Actuators & Servo Motors: Collaborative robot joints, AGV drive motors, and medical robotics benefit from low cogging torque and smooth speed control.
• 🏭 Industrial Brushless Motors: Power tools, e-scooters, and cooling fans — universal stator platform available.

5. Engineering Selection: 5-Step Guide for Stator Core Optimization

Follow these steps to specify the right brushless motor stator core for your drone/robot motor project:

1. Determine operating frequency & speed range: For UAV motors (300-800Hz) → 0.20–0.27mm laminations; for robot servos (<300Hz) → 0.35mm grade.
2. Select stack geometry: Outer/Inner diameter, slot/pole combination (9N12P, 12N14P, 18S20P). Reenives supports private mould.
3. Insulation & coating: Epoxy powder coating for moisture/dust resistance; standard for industrial.
4. Stacking & fixation: Interlocking or laser welding based on mechanical strength requirements.
5. Request prototype samples & core loss report: Reenives delivers engineering samples in 10–12 working days with full test documentation.

💡 Pro Tip: Our engineering team provides free magnetic simulation (FEA) to validate stator design before tooling — saving development cost and time.

6. FAQ – Stator Core Technical Deep Dive

7. Summary & Direct Procurement Support

Reenives provides engineering-driven stator core solutions for brushless motors used in drones, robotics, and industrial automation. With 4 years of specialized manufacturing, 100+ patents, and 500+ staff, we ensure reliable quality, custom designs, and global logistics. Contact our technical sales team for free samples, FEA simulation, and bulk pricing.
