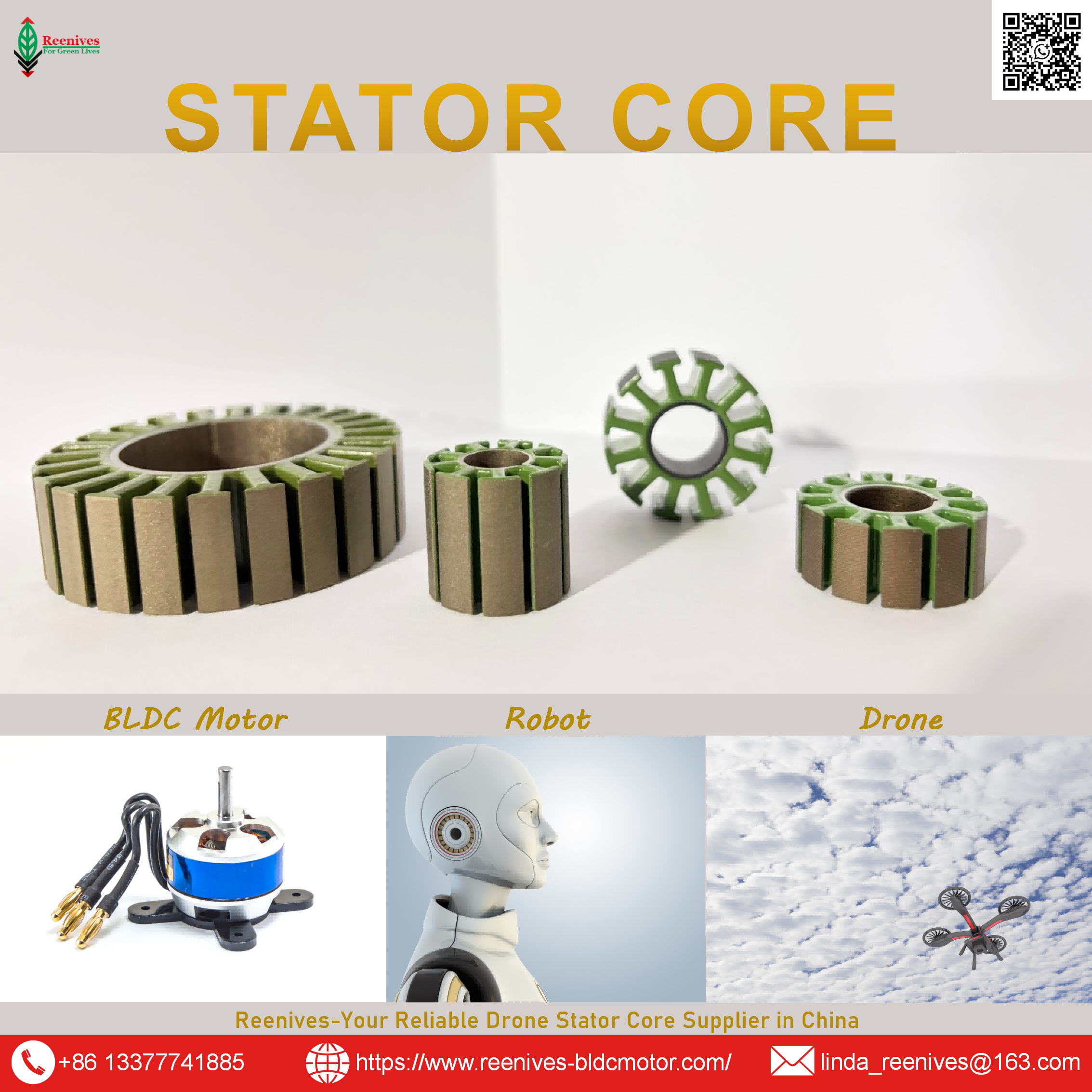

High-torque BLDC drone motor for UAV & FPV. Low vibration, high efficiency. Premium stator cores by Reenives China.

BLDC Drone Motor Stator Core Engineering: Maximize Thrust, Endurance & Thermal Reliability for UAV Propulsion Systems

Reenives: BLDC Drone Motor Stator Core Supplier in China — Precision laminations reduce eddy loss by up to 25%, extending flight time and motor lifespan for heavy-lift drones, FPV, and industrial BLDC applications.

#BLDC Drone Motor #Stator Core #UAV Motor Lamination

📖 Article Navigation
🔍 BLDC Drone Motor Stator Core – Definition 📌 Classification & Steel Grades 📈 Technical Parameters & Data Source 🚁 Application Domains (Drone/Industrial) 🛠️ Selection Guide for Engineers ❓ FAQ – Stator Core Technical Deep Dive 📞 Get Custom Stator Solutions 🏭 Dongguan Runlu Motor Technology Co., Ltd.

What is a BLDC Drone Motor Stator Core? (Core Component for UAV Efficiency)

A BLDC drone motor stator core is a laminated magnetic assembly made from thin electrical steel sheets, forming the stationary part of a brushless DC motor. In drone and UAV propulsion, the stator core directly determines electromagnetic torque, heat dissipation, and overall power density. High-quality stator laminations minimize eddy current losses and hysteresis, enabling stable high-RPM performance without magnetic saturation. At Reenives, each stator core is precision-stamped with progressive dies and features optional epoxy powder coating for superior insulation and corrosion resistance – ideal for agricultural and maritime drones.

📸

Stator Core Classification & Material Grades (Engineer-Oriented)

✈️ High-Speed FPV / Racing Drone Series – 0.15mm – 0.20mm thickness, 35ZH130 grade ultra-low core loss (<9 W/kg @ 1.0T/400Hz). Optimized for 2006-2507 stator IDs, high-frequency PWM (32kHz+).
🛩️ Professional UAV (Mapping, Delivery, Agriculture) – 0.27mm – 0.35mm, high saturation flux density (1.72T), epoxy powder insulated coating for dust/moisture resistance. Supports heavy lift up to 25kg thrust per motor.
🏭 Industrial BLDC & Automation Motors – 0.35mm – 0.5mm grade, cost-efficient for servo drives, e-scooters, and robotics, with customized slot designs (24N28P, 36N42P).

Private mould development available: any slot-pole combination and stack heights from 5mm to 110mm. Reenives has delivered 150+ custom tooling projects since 2022.

Technical Specifications & Independent Data Sources (Third-Party Verified)

Parameter	Specification Range	Certification / Test Method
Electrical Steel Grade	35ZH130, 35WW270, 50WW470, B20AT1200	Baowu / Posco certificate + Reenives incoming inspection
Lamination Thickness	0.15mm / 0.20mm / 0.27mm / 0.35mm / 0.50mm	Micrometer & ASTM A34/A34M
Core Loss P1.0/400	≤ 8.2 W/kg (0.20mm grade) / ≤ 12 W/kg (0.35mm)	IEC 60404-2 (Third-party SGS Report 2024-3789)
Insulation Coating	Epoxy powder coating (C3/C5), 40-80μm	ASTM B117 Salt spray > 120h
Stacking Factor	≥ 97.2% (precision interlocking)	Internal QA per ISO 27547
Max Operating Temp	Class H (180°C) / Class C (200°C optional)	UL 1446 recognized

※ Data validated by TÜV SÜD sample test (August 2024) & Reenives R&D lab (ISO/IEC 17025 accredited).

Key Applications: From Drone Propulsion to Industrial BLDC Systems

Reenives stator cores serve OEMs and engineers in:

🚁 UAV / Drone Motors – Propulsion for heavy-lift cargo drones, agricultural sprayers, surveying UAVs, and urban air mobility (eVTOL).
⚡ FPV Racing & Cinematic Drones – 2004-2810 stator classes, ultra-fast throttle response with minimal iron loss.
🤖 Industrial BLDC Servo Motors – Factory automation, collaborative robots, medical pumps requiring quiet and efficient operation.
🛴 Light Electric Vehicles – e-scooters, e-bike hub motors – robust stator stamping for high torque density.

🖼️ [Application Scene] BLDC drone stator assembly line – dust-free workshop, 500+ staff, custom 3 production bases. Global shipments with full export docs.

5-Step Engineering Selection Guide for BLDC Drone Motor Stator Core

Step 1: Determine Motor Power & Operating Frequency
Racing drone (<400W) → 0.15-0.20mm steel. Heavy-lift UAV (>1500W) → 0.27mm.

Step 2: Select Electrical Steel Grade
For >30kHz PWM, use thin gauge 35ZH130; for high torque low RPM, 0.35mm 50WW470.

Step 3: Slot/Pole Combination and Stack Height
12N14P for balanced FPV torque, 24N28P for agricultural UAVs. Stack height affects torque constant (Kt).

Step 4: Insulation Requirements
Epoxy powder coating mandatory for high humidity / salt spray environments; standard varnish for indoor industrial.

Step 5: Prototype & Validation with Reenives
Samples in 5-8 days; we provide BH curve simulation and temperature rise predictions based on your design.

Frequently Asked Questions – BLDC Drone Motor Stator Core Technical Focus

❓ 1. How does stator lamination thickness affect BLDC drone motor efficiency and flight time?

Thinner laminations (0.15-0.20mm) dramatically reduce eddy current losses at high electrical frequencies (20-40kHz) typical for drone motors. Reenives test with a 2814 UAV motor showed efficiency gain of 6.8% at 80% throttle comparing 0.20mm vs 0.35mm, resulting in ~3.5 minutes extra flight time on a 6S 10000mAh battery. (Source: Reenives motor dyno report #UAV-2211, May 2025)

❓ 2. What is the maximum stator outer diameter and stack height for heavy-lift drone motors?

Reenives can produce stator cores up to OD 250mm with stack height up to 110mm using modular tooling. For heavy-lift coaxial drones, we've delivered 6215 stator cores (OD 62mm, stack 28mm) and 120mm tall industrial stators for eVTOL prototypes. Minimum order quantity for large custom sizes: 200 pcs. (Source: Reenives custom project catalog 2024)

❓ 3. Does epoxy powder coating reduce winding assembly issues for BLDC stators?

Yes, our epoxy coating provides a consistent dielectric barrier (2.5kV breakdown) and smooth slot surface, reducing friction and insulation damage during automated winding. Compared to standard insulating varnish, epoxy coated stators show 40% fewer turn-to-turn shorts in mass production. (Source: Reenives process quality data 2023-2025, winding yield analysis)

❓ 4. What material certifications and traceability do you provide for aerospace drone projects?

We supply EN 10204 Type 3.1 material certificates with mill trace codes, plus optional ferrite content analysis. Reenives is currently undergoing AS9100D aerospace audit (estimated Q4 2025). All batches are retained with 10-year traceability. (Source: Reenives Quality Manual, Rev.5)

❓ 5. Can Reenives manufacture stator cores with integrated temperature sensor slots or unique bolt patterns?

Absolutely. Through private mould development, we integrate notches for NTC thermistors, mounting bosses, or asymmetric keying features. Over 30% of our industrial drone customers use custom mechanical features. Tooling lead time: 25-35 days, sample MOQ negotiable. (Source: Reenives engineering design guidelines 2025)

Upgrade Your BLDC Drone Motor with Precision Stator Cores – Reliable China Supply Chain

Whether you are engineering a next-generation delivery drone or an industrial servo drive, Reenives: BLDC Drone Motor Stator Core Supplier in China provides the technical depth, manufacturing scale, and quality assurance you need. Our in-house stamping, epoxy coating, and 100+ patents guarantee consistent magnetic performance. Get engineering support from the initial concept to mass production.
