BLDC Outrunner Motor Stator Rotor Stamping Supplier
Motor Stator Rotor — BLDC Outrunner Motor Stator Rotor Stamping for Drone & Brushless Motors | Reenives Stator Core Supplier
⚠️ Are your BLDC outrunner motor stator and rotor suffering from burrs, mismatched air gaps, or short die life? Poor stamping quality — worn dies, inconsistent die clearance, or mismatched stator-rotor tolerances — increases core loss, causes vibration, and drives up production costs. In high-volume outrunner drone motor manufacturing, the stamping process is where performance is won or lost.
✅ Reenives stamps matched stator and rotor cores engineered for BLDC outrunner motors. With imported high-speed progressive die stamping lines, precision carbide tooling, epoxy powder coating, and dust-free workshops, we deliver stamped stator and rotor cores with low burrs, tight tolerances, and long die life. As a reliable BLDC outrunner motor stator rotor stamping supplier, we help 1000+ enterprises improve motor reliability and reduce production costs.
📋 Table of Contents
What Is BLDC Outrunner Motor Stator Rotor Stamping?
BLDC outrunner motor stator rotor stamping is the process of cutting thin electrical steel sheets into precise stator and rotor core shapes using a stamping press and hardened steel dies. The stamped laminations are then stacked, interlocked or bonded, and coated to form the stator and rotor cores of an outrunner brushless motor.
In an outrunner BLDC motor, the stator is fixed inside while the rotor (outer bell) spins outside, carrying the permanent magnets and the propeller. Because both parts must work together as a matched pair, stamping quality determines:
- Dimensional accuracy & stacking factor
- Burr height & inter-lamination shorts
- Core loss & motor efficiency
- Air gap consistency & vibration levels
- Tooling life & production cost per piece
High-speed progressive die stamping with precision carbide tooling ensures consistent lamination geometry, minimal burrs, and long tool life — critical for high-volume outrunner drone motor production.

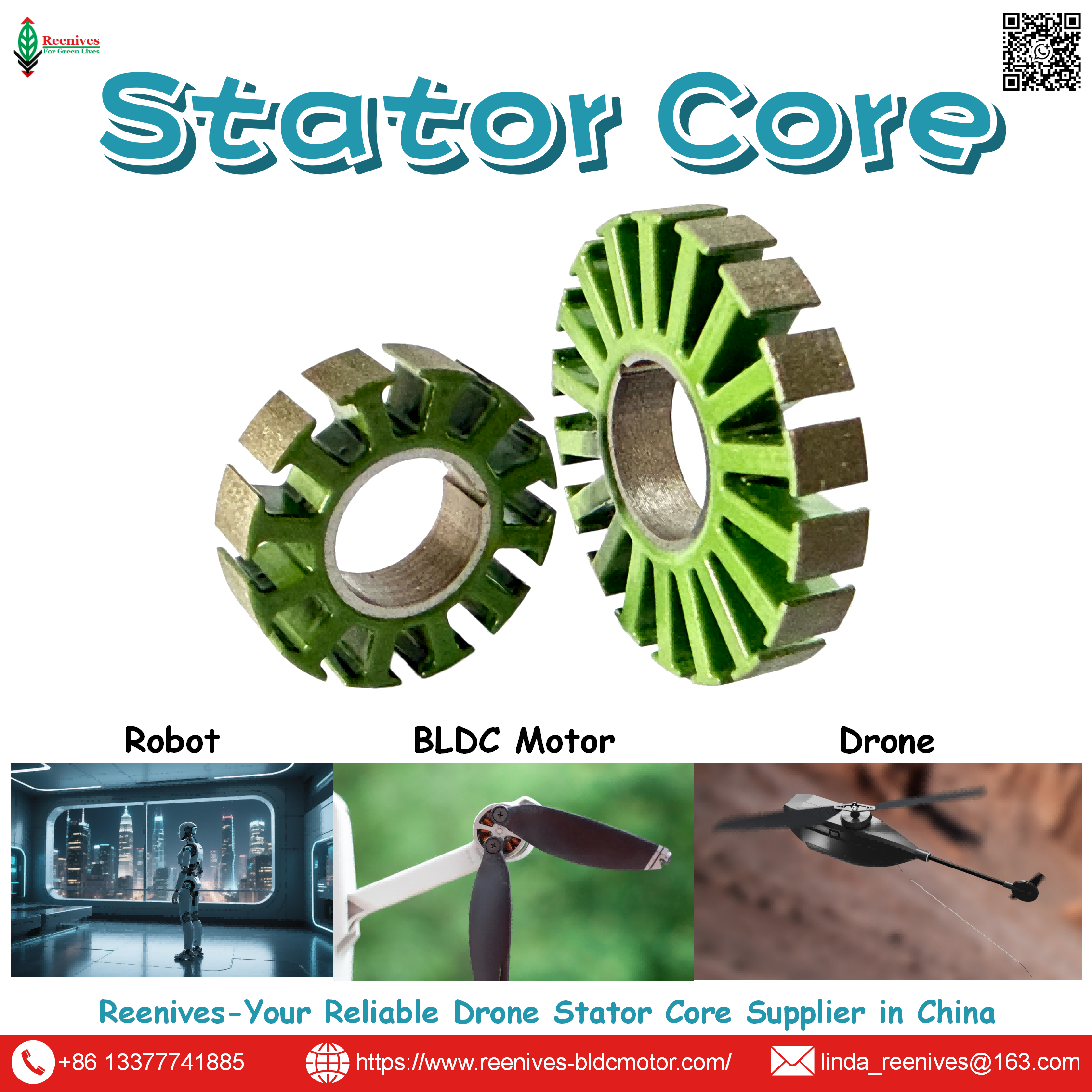

Precision BLDC outrunner motor stator and rotor stamping — manufactured by Reenives with imported high-speed stamping & epoxy powder coating lines.
Types of Stator & Rotor Stamping
Stator and rotor stamping can be performed using several methods, each suited to different production volumes, precision requirements, and cost targets. Reenives offers the following:
- High-Speed Progressive Die Stamping — Continuous coil feeding through a multi-station die. Highest efficiency for high-volume outrunner drone motor production. Low cost per piece, excellent consistency.
- Compound Die Stamping — Single-stroke die that cuts the entire lamination profile in one hit. Good for medium volumes, high precision.
- Segmented Stator Stamping — Individual teeth stamped separately for separate winding, then assembled into a full core. Higher slot fill factor.
- Rotor Stamping with Magnet Pockets — Rotor laminations stamped with interior magnet slots for IPM outrunner designs.
- Interlocked Stator & Rotor Stacks — Stamped laminations with integral dimples or dovetails for mechanical assembly. Cost-effective for high volume.
- Bonded Stator & Rotor Stacks — Stamped laminations bonded with adhesive instead of interlocking, reducing eddy current losses and vibration.
- Epoxy-Coated Stator & Rotor Stacks — Stamped laminations individually coated with epoxy powder for superior insulation and corrosion resistance.
- Custom Stator & Rotor Stamping — Private mould development for unique slot counts, outer diameters, and tooth profiles.
Whether you need high-volume progressive die stamping or low-volume prototype stamping, Reenives can supply the right solution.
Key Specifications & Data
Below are typical specifications for Reenives BLDC outrunner motor stator and rotor stamping. Custom values are available upon request.
| Parameter | Typical Range / Value | Notes |
|---|---|---|
| Lamination Material | Silicon steel (e.g., 35WW250, 50WW470) | Low core loss grades |
| Lamination Thickness | 0.20 mm – 0.50 mm | Thinner = lower eddy current loss |
| Stator Outer Diameter | 20 mm – 200 mm | Customizable |
| Stator Inner Diameter | 10 mm – 180 mm | Depends on rotor design |
| Rotor Outer Diameter | 10 mm – 180 mm | Matched to stator bore |
| Stack Length | 5 mm – 80 mm | Affects torque & power |
| Slot / Pole Number | 6S/4P, 12S/14P, 24S/28P, etc. | Matched pairs |
| Stamping Method | High-speed progressive die | For high volume |
| Stamping Tolerance | ±0.05 mm (critical dimensions) | High-precision dies |
| Burr Height | ≤ 0.03 mm | Optimized die clearance |
| Insulation Coating | Epoxy powder coating | Uniform, pinhole-free |
| Core Loss (at 400Hz, 1T) | ≤ 25 W/kg | Material dependent |
| Die Life | 1–5 million strokes (typical) | Depends on material & maintenance |
Data source: Reenives internal testing & supplier material datasheets, 2024. Actual values may vary by design.
Applications of Outrunner Stator & Rotor Stamping
Reenives outrunner stator and rotor stamping is used across a wide range of drone and brushless motor applications:
- FPV Racing Drones — High RPM, lightweight stamped stators and rotors with low cogging torque and low inertia.
- Cinematic & Photography Drones — Smooth, vibration-free stamped cores for stable aerial footage.
- Agricultural Spraying Drones — Corrosion-resistant epoxy-coated stamped cores for harsh chemical environments.
- Industrial Inspection Drones — High-torque stamped cores for long endurance and heavy payloads.
- eVTOL & UAV Propulsion — Custom high-power stamped cores for next-generation air mobility.
- Robot Actuators — Low cogging torque stamped cores for precise motion control.
- EPS Motors — Low NVH stamped cores for automotive electric power steering systems.
- General BLDC Motors — Fans, pumps, power tools, and automotive actuators.
Reenives BLDC outrunner motor stator and rotor stamping powers FPV, agricultural, cinematic, and industrial UAVs worldwide.
How to Select the Right Stator & Rotor Stamping Process
Choosing the right stator and rotor stamping process for your outrunner BLDC motor involves several engineering and commercial decisions. Follow these steps:
- Determine Production Volume — High volume favors progressive die stamping; low volume or prototypes favor laser cutting or compound dies.
- Specify Lamination Material & Thickness — For high-RPM outrunner drone motors, use 0.20–0.25 mm low-loss silicon steel. For lower RPM, 0.35–0.50 mm is cost-effective.
- Define Critical Tolerances — Inner diameter, outer diameter, and slot dimensions typically require ±0.05 mm. Burr height should be ≤ 0.03 mm.
- Match Stator and Rotor — Ensure the stator bore and rotor outer diameter are designed as a matched pair with a controlled air gap (0.2–1.0 mm).
- Evaluate Die Design & Maintenance — Progressive dies with high-quality carbide inserts last longer and maintain precision. Ask about die maintenance schedules.
- Check Coating Capabilities — Epoxy powder coating for insulation and corrosion resistance. Ensure uniform, pinhole-free coverage.
- Request Sample Laminations — Test for burr height, dimensional accuracy, and magnetic performance before committing to production.
- Request Samples & Test — Reenives provides free samples for qualified projects. Test core loss, cogging torque, temperature rise, and mechanical fit.
FAQ — Stator & Rotor Stamping Parameters
Q1: What is the difference between progressive die stamping and compound die stamping for stator and rotor cores?
A: Progressive die stamping uses a multi-station die that performs cutting, notching, and forming operations sequentially as the coil feeds through. It offers the lowest cost per piece at high volumes and excellent consistency. Compound die stamping completes the entire lamination profile in a single press stroke, which is suitable for medium volumes and offers high precision with simpler tooling. For outrunner drone motor production above a few thousand pieces, progressive die stamping is usually more economical.
Source: Reenives engineering team, based on production experience.
Q2: What burr height can you achieve with your stator and rotor stamping process?
A: Our high-speed progressive die stamping process typically achieves a burr height of ≤ 0.03 mm with optimized die clearance and regular maintenance. This ensures clean stacking, reduces inter-lamination shorts, and minimizes vibration. Tighter burr control can be achieved for specific applications upon request.
Source: Reenives quality control standards, 2024.
Q3: What lamination thickness do you recommend for high-RPM outrunner drone motors?
A: For high-RPM outrunner drone motors (above 10,000 RPM), we recommend 0.20 mm or 0.25 mm silicon steel laminations for both stator and rotor. Thinner laminations significantly reduce eddy current losses, which helps keep the motor cool and improves efficiency. For lower RPM applications, 0.35 mm or 0.50 mm can be more cost-effective.
Source: Reenives engineering team, based on motor design guidelines and material datasheets.
Q4: What is the typical die life for progressive stamping of stator and rotor laminations?
A: Die life depends on the material grade, thickness, and maintenance schedule. For standard silicon steel (e.g., 35WW250) at 0.20–0.50 mm thickness, a high-quality carbide progressive die typically achieves 1–5 million strokes before major refurbishment. Regular maintenance and sharpening extend die life and maintain precision.
Source: Reenives tooling engineering data, 2024.
Q5: Why must the outrunner stator and rotor be stamped as a matched pair?
A: The stator and rotor form a single magnetic circuit. In outrunner motors, the rotor spins outside the stator, so any mismatch in air gap, slot/pole count, or thermal expansion causes cogging torque, vibration, and efficiency loss. Stamping both cores from the same material and to the same tolerance ensures the air gap is consistent around the circumference. Our high-precision stamping ensures stator bore and rotor outer diameter tolerances of ±0.05 mm, allowing reliable small air gaps.
Source: Reenives engineering team, based on motor design principles.
Q6: Can you develop custom stator and rotor stamping for my specific outrunner BLDC motor?
A: Absolutely. We support private mould development. Provide us with your required stator outer diameter, stator bore, rotor outer diameter, stack length, slot/pole combination, and magnet configuration. Our R&D team will design and produce custom stamping dies and matched stator/rotor cores tailored to your motor. Tooling lead time is typically 15–25 days.
Source: Reenives custom development process.
Summary — Get Your Stator & Rotor Stamping Quote Today
Ready to Improve Your BLDC Outrunner Motor Performance with Precision Stator & Rotor Stamping?
Reenives is a reliable BLDC outrunner motor stator rotor stamping supplier with 4 years of manufacturing experience, 100+ R&D patents, and 3 production bases. We serve 1000+ enterprises worldwide with high-precision stator and rotor stamping for UAV and BLDC motors.
📦 Bulk purchasing · 🔧 Private mould development · 🧪 Free samples
🌐 Official Website: www.reenives-bldcmotor.com
📧 Email: linda_reenives@163.com
Contact us now for a free sample and tailored solution for your production scenario.
