What Is a Drone Motor Core Stator?
A core stator — also written as stator core — is the stationary electromagnetic core of a brushless DC (BLDC) motor. In a drone motor, the core stator sits at the center of the motor and is made from stacked silicon steel laminations with slots that hold copper windings. When the motor controller energizes the windings in sequence, the core stator generates a rotating magnetic field that drives the rotor.
The term "core stator" emphasizes the laminated magnetic core — the stack of thin electrical steel sheets that forms the magnetic circuit and carries the windings. It is the physical structure that makes the motor work: without a proper laminated core, eddy currents would circulate freely through solid steel, generating massive losses and destroying efficiency within seconds at the RPM levels drone motors demand.
In an outrunner drone motor — the dominant configuration in UAV propulsion — the core stator is fixed inside while the rotor (the outer bell) spins around it, carrying permanent magnets and mounting the propeller directly. In an inrunner configuration, the core stator surrounds the rotor.
Key functions of the drone motor core stator:
- Holds the copper windings that carry the motor current
- Generates the rotating magnetic field that drives the rotor
- Provides a low-reluctance magnetic circuit with the rotor
- Conducts heat away from the windings to the motor mount
- Limits eddy current loss through thin, insulated laminations
Put simply: the core stator creates the rotating magnetic field, and the rotor turns with it — converting electrical energy into the torque that lifts the aircraft.

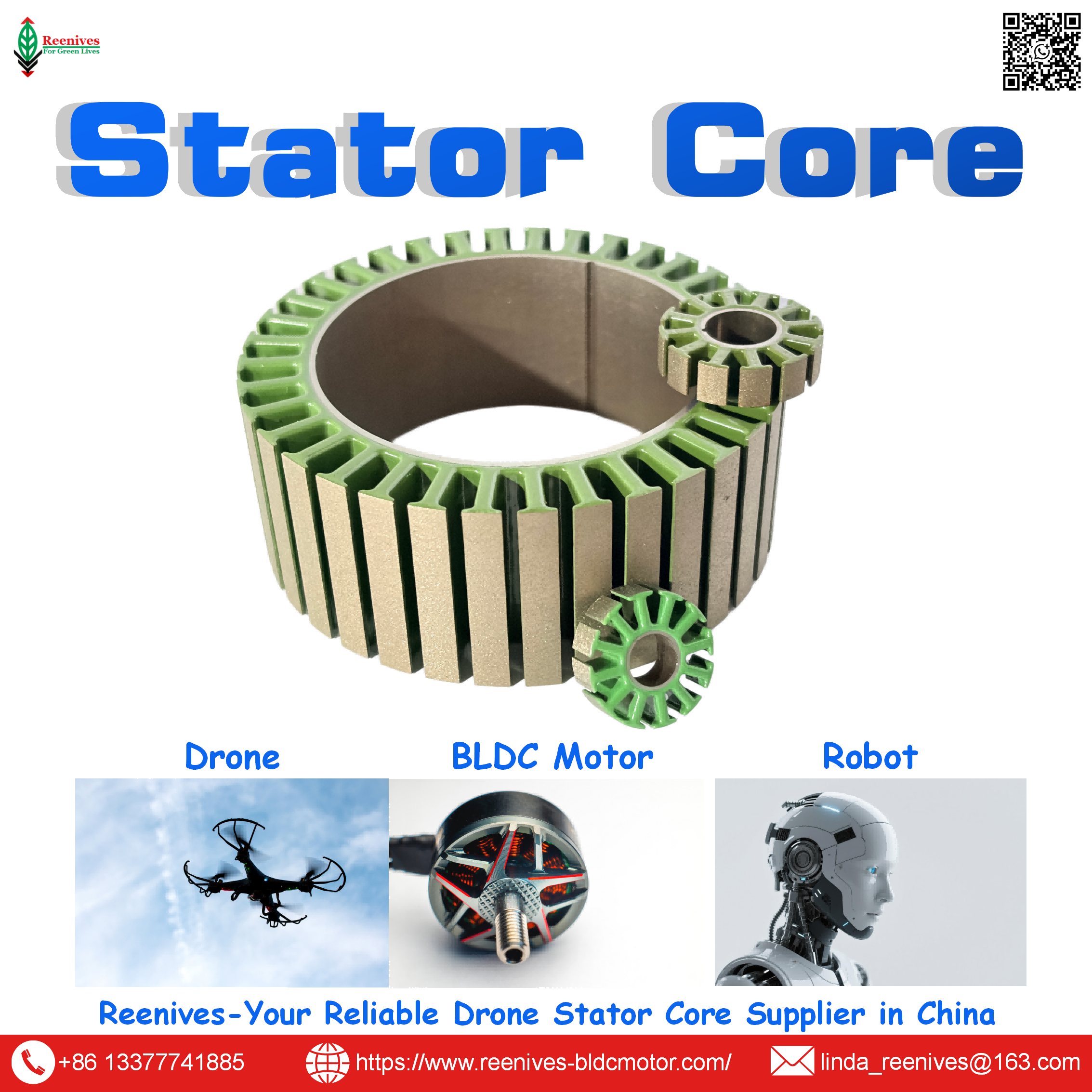

Precision drone motor core stator — manufactured by Reenives with imported high-speed stamping & epoxy powder coating lines.
Types of Core Stators
Core stators come in several configurations, each suited to different motor architectures and performance requirements. Reenives manufactures the following types:
- Outrunner Core Stators — Designed for motors where the rotor spins outside the stator. The dominant configuration in drone propulsion for high torque and direct propeller mounting.
- Inrunner Core Stators — Designed for motors where the rotor spins inside the stator. Used in high-RPM ducted fan and EDF applications.
- Segmented Core Stators — Individual teeth are wound separately and assembled, achieving higher slot fill factors. Ideal for high-torque drone motors.
- One-Piece Laminated Core Stators — Traditional stacked lamination construction, cost-effective for medium to high-volume production.
- Bonded Core Stators — Laminations bonded with adhesive instead of interlocking, reducing eddy current losses and vibration at high frequencies.
- Epoxy-Coated Core Stators — Powder-coated for enhanced insulation, corrosion resistance, and wire adhesion.
- High-Pole-Count Core Stators — Designed for 12S/14P, 24S/28P, and other high pole count configurations common in UAV propulsion.
- Gimbal Core Stators — Ultra-low cogging, high pole count core stators for camera gimbals and stabilization systems.
- Custom Core Stators — Private mould development for unique slot counts, diameters, stack lengths, and mounting interfaces.
Whether you need a standard 12-slot/14-pole core stator or a custom high-frequency design, Reenives can deliver.
Key Specifications & Data
Below are typical specifications for Reenives drone motor core stators. Custom values are available upon request.
| Parameter | Typical Range / Value | Notes |
|---|---|---|
| Lamination Material | Silicon steel (e.g., 20JNEH1200, 35WW250) | Low core loss grades |
| Lamination Thickness | 0.15 mm – 0.50 mm | Thinner = lower eddy current loss |
| Stator Outer Diameter | 20 mm – 200 mm | Customizable |
| Stator Bore (Inner Diameter) | 10 mm – 180 mm | Depends on rotor design |
| Stack Length | 5 mm – 80 mm | Affects torque & power |
| Slot Number | 6, 9, 12, 18, 24, etc. | Matches pole count |
| Motor Configuration | Outrunner / Inrunner | Application dependent |
| Insulation Coating | Epoxy powder, H-Class 180°C | Uniform, pinhole-free, electrostatic |
| Core Loss (at 400Hz, 1T) | ≤ 25 W/kg | Material dependent |
| Dimensional Tolerance | ±0.05 mm (critical dimensions) | High-precision stamping |
| Burr Height | ≤ 0.03 mm | Clean edges for stacking |
| Stacking Factor | ≥ 95% | Minimizes air gaps |
Data source: Reenives internal testing & supplier material datasheets, 2024–2025. Actual values may vary by design.
Applications & Why the Core Stator Matters
The core stator directly determines the motor's performance across every flight condition. Here is why core stator design and quality matter so much:
- Core Loss & Flight Time — Thin laminations with proper insulation coating reduce eddy current losses, directly improving motor efficiency and flight endurance.
- Slot Fill Factor — Higher slot fill means more copper in the same space, increasing torque density and reducing I²R losses.
- Thermal Performance — Lower core loss means less heat generation, keeping the motor cooler and extending component life.
- Air Gap Consistency — Tight core stator tolerances keep the air gap uniform, essential for smooth high-RPM operation.
- Cogging Torque & Vibration — Slot/pole combination and lamination quality determine cogging torque, which affects control smoothness and vibration.
- Production Consistency — Consistent core stator geometry and stacking pressure ensure that every motor in a batch delivers the same KV, thrust, and thermal behavior.
Reenives drone motor core stators are used across a wide range of UAV and brushless motor applications:
- FPV Racing Drones — High RPM, lightweight core stators with low cogging torque and fast throttle response.
- Cinematic & Photography Drones — Smooth, vibration-free core stators for stable aerial footage.
- Agricultural Spraying Drones — Corrosion-resistant epoxy-coated core stators for harsh chemical environments.
- Industrial Inspection Drones — High-torque core stators for long endurance and heavy payloads.
- eVTOL & UAV Propulsion — Custom high-power core stators for next-generation air mobility.
- Camera Gimbal Motors — Ultra-low cogging core stators for professional stabilization systems.
- General BLDC Motors — Fans, pumps, robotics, power tools, and automotive actuators.
Reenives drone motor core stators power FPV, agricultural, cinematic, and industrial UAVs worldwide.
How to Select the Right Core Stator
Choosing the correct core stator for your drone motor involves several engineering decisions. Follow these steps:
- Determine Motor Type — Outrunner or inrunner? Outrunner core stators are common in drones for high torque; inrunner core stators suit high-RPM ducted fans.
- Determine Required Torque & RPM — Higher torque needs more stack length or larger diameter. High RPM demands thinner laminations and low-loss material.
- Select Slot/Pole Combination — Common drone motors use 12S/14P or 9S/6P. This affects cogging torque, winding factor, and efficiency.
- Choose Lamination Thickness — For high-frequency operation (e.g., 400Hz+), use 0.15–0.20 mm laminations to reduce eddy current losses.
- Select Material Grade — Lower-loss silicon steel grades (e.g., 20JNEH1200) reduce heat but cost more. Balance performance and budget.
- Consider Assembly Method — Segmented core stators offer higher slot fill; one-piece core stators are more economical.
- Decide on Insulation & Coating — Epoxy powder coating with H-Class 180°C rating is recommended for moisture, vibration, and chemical resistance.
- Request Samples & Test — Reenives provides free samples for qualified projects. Test core loss, temperature rise, cogging torque, and mechanical fit.
FAQ — Core Stator Parameters
Q1: What is a core stator in a drone motor?
A: A core stator is the stationary electromagnetic core of a brushless DC motor. In a drone motor, it sits at the center and is made from stacked silicon steel laminations with slots that hold copper windings. When the motor controller energizes the windings in sequence, the core stator generates a rotating magnetic field that drives the rotor. In an outrunner drone motor, the core stator is fixed inside while the rotor spins around it.
Source: Reenives engineering team, based on motor design principles.
Q2: What is the difference between a core stator and a rotor core?
A: The core stator is the stationary part that holds the copper windings and generates the rotating magnetic field when energized. The rotor core is the rotating part that carries permanent magnets and produces torque. In an outrunner motor, the core stator is fixed inside and the rotor core spins outside; in an inrunner motor, the rotor core spins inside the core stator. Both are built from stacked silicon steel laminations but have different geometries and functions, and they must be matched as a pair.
Source: Reenives engineering team, based on motor design principles.
Q3: What lamination thickness do you recommend for high-RPM drone motor core stators?
A: For high-RPM drone motors (above 10,000 RPM), we recommend 0.15 mm or 0.20 mm silicon steel laminations for the core stator. Thinner laminations significantly reduce eddy current losses, which helps keep the motor cool and improves efficiency. For lower RPM applications, 0.35 mm or 0.50 mm can be more cost-effective.
Source: Reenives engineering team, based on motor design guidelines and material datasheets.
Q4: What is the typical core loss of your core stators?
A: Our standard core stators using 20JNEH1200 or 35WW250 silicon steel typically exhibit core loss ≤ 25 W/kg at 400Hz and 1 Tesla. With premium low-loss materials, we can achieve even lower values. Actual core loss depends on lamination thickness, material grade, and operating frequency.
Source: Reenives internal testing data, 2024.
Q5: What is the dimensional tolerance and burr height of your core stators?
A: For critical dimensions such as inner diameter, outer diameter, and slot dimensions, we maintain tolerances of ±0.05 mm. Burr height is controlled to ≤ 0.03 mm to ensure clean stacking and reduce vibration. Tighter tolerances can be achieved upon request with our high-precision stamping lines.
Source: Reenives quality control standards.
Q6: Can you develop custom core stators for my specific drone motor?
A: Absolutely. We support private mould development. Provide us with your required stator outer diameter, stator bore, stack length, slot number, pole count, lamination thickness, and any mounting features. Our R&D team will design and produce a custom core stator tailored to your motor. Tooling lead time is typically 15–25 days.
Source: Reenives custom development process.
